Which Is Better: 2-Pipe vs 4-Pipe Condo HVAC Systems in Chicago?

If you are buying or owning a condo in Chicago, the HVAC system matters more than most people realize. One of the biggest differences you will see in downtown high-rises, North Shore condos, and Western Suburb buildings is whether the property uses a two-pipe or four-pipe system. Understanding the difference can affect comfort, resale value, and monthly costs. This guide breaks down two-pipe vs four-pipe condo systems and explains which is better for Chicago living in 2026.

What Is a 2-Pipe vs 4-Pipe Condo HVAC System?

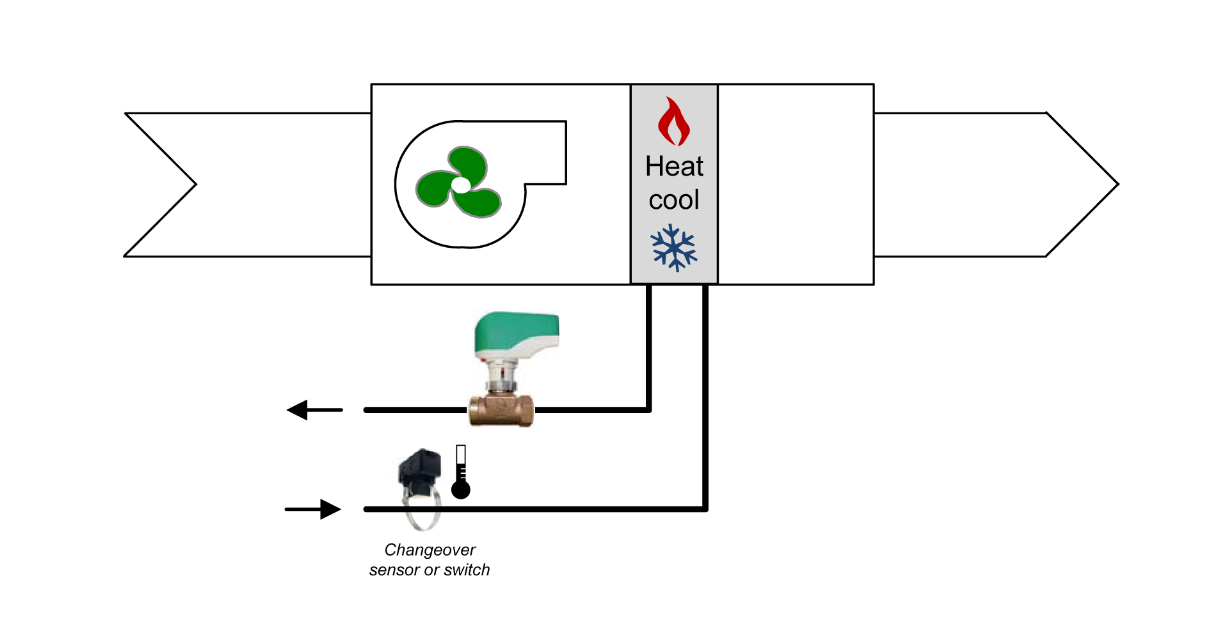

2-pipe system: FCU connection diagram : Photo credits to Evroprom

A 2-pipe HVAC system consists of just two hydronic pipes that handle both heating and cooling. One pipe serves as the supply line, while the other functions as the return line, meaning the system’s heating and cooling coils share the same piping for water and air distribution. As a result, a 2-pipe system cannot provide heating and cooling simultaneously. You must manually select either heating or cooling for the entire building or space.

4-pipe system: FCU connection diagram : Photo credits to Evroprom

A 4-pipe HVAC system features two supply pipes and two return pipes, dedicated separately to heating and cooling. This setup allows the heating and cooling coils to operate independently through separate hydronic piping. As a result, a 4-pipe system can simultaneously heat and cool a condo, enabling better temperature control and effective dehumidification.

In Chicago’s climate, where spring and fall temperatures can swing dramatically, this difference becomes very noticeable for condo owners.

Key Features and Differences Between Two-Pipe and Four-Pipe Systems

Two-Pipe Condo Systems

• Common in older Chicago high-rises

• Lower installation and maintenance costs

• Seasonal changeovers determined by the HOA

• Limited temperature control during spring and fall

• Often found in vintage buildings downtown and along the lakefront

Four-Pipe Condo Systems

• Common in newer luxury buildings

• Individual heating and cooling control year-round

• Higher upfront and maintenance costs

• Better comfort and energy efficiency

• More attractive to buyers in competitive markets like River North, Lincoln Park, and the North Shore

According to ASHRAE and the U.S. Department of Energy, four-pipe systems provide greater flexibility and indoor comfort, especially in climates with frequent temperature swings like Chicagoland.

Why 2-Pipe vs 4-Pipe Systems Matter for Chicago Condo Buyers

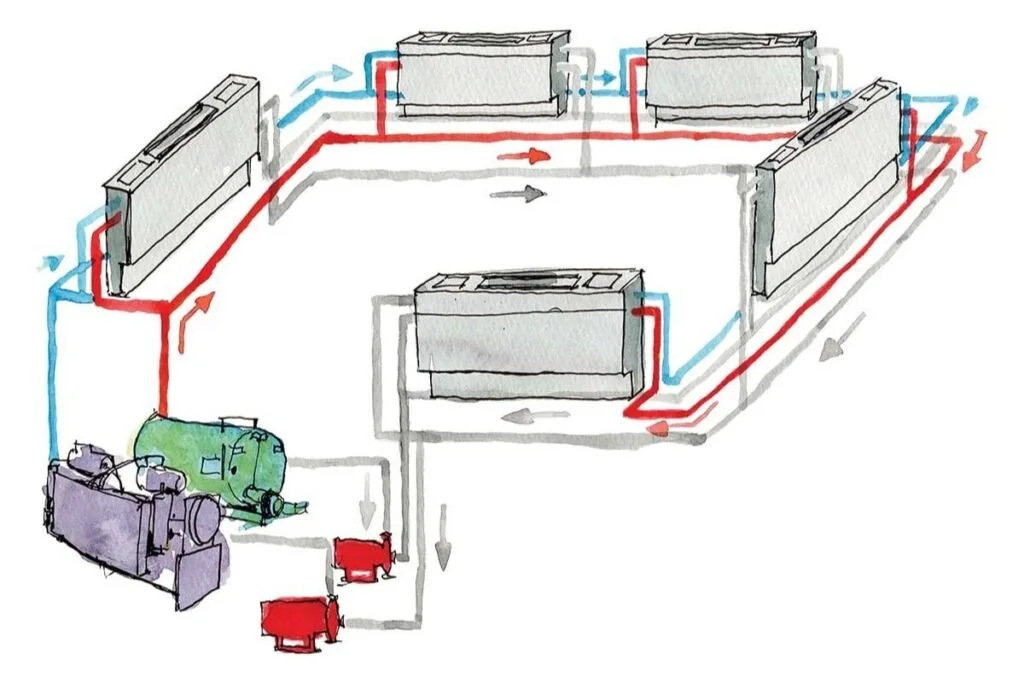

4-pipe system sketch diagram : Photo credits to Evroprom

For buyers, HVAC flexibility directly impacts daily comfort and long-term value. Two-pipe systems can become frustrating during shoulder seasons when outdoor temperatures fluctuate, but the building has not switched systems yet.

From a resale perspective, condos with four-pipe systems often command higher prices and sell faster. Buyers relocating to the North Shore or Western Suburbs often prioritize comfort and individual climate control, especially families and remote professionals.

Investors also favor four-pipe buildings due to higher tenant satisfaction and lower vacancy risk.

Frequently Asked Questions About Two-Pipe vs Four-Pipe Condo Systems

• What is a two-pipe condo system?

  -A two-pipe system circulates either hot or cold water at one time, meaning the entire building is set to heating or cooling based on the season.

• What is a four-pipe condo system?

  -A four-pipe system allows both heating and cooling to run simultaneously, giving individual units full temperature control year-round.

• Which system is better for Chicago weather?

  -Four-pipe systems are generally better for Chicago due to unpredictable temperature changes in spring and fall.

• Are four-pipe condos more expensive?

  -Yes, four-pipe buildings typically have higher HOA fees, but they often provide better comfort and stronger resale value.

• Can a two-pipe building be converted to four-pipe?

  -Conversions are rare and expensive. Most buyers choose the system that best fits their comfort expectations upfront.

• Do luxury condos usually have four-pipe systems?

  -Yes, most newer luxury high-rises in downtown Chicago and the North Shore use four-pipe HVAC systems.

Expert Tips and Local Insights

Pro Tip: If you are sensitive to temperature changes or work from home, prioritize four-pipe buildings. Comfort matters more than most buyers expect.

Market Insight: In downtown Chicago, four-pipe condos are increasingly marketed as a premium feature, especially in newer developments and renovated high-rises.

Buyer Tip: Always review HOA documents to confirm system type, seasonal changeover dates, and any HVAC-related restrictions before making an offer.

Summary

When comparing two-pipe vs four-pipe condo systems, the right choice depends on comfort expectations, budget, and long-term goals. Two-pipe systems offer affordability, while four-pipe systems deliver flexibility, comfort, and stronger resale appeal. For many Chicago buyers in 2026, four-pipe systems remain the preferred option.
